Problem: Every once in a while some guitar players will go out and party hard. Sometimes they may even injure their strumming hand. Also, some musicians may suffer from arthritis, or issues that make holding a standard guitar plectrum (aka pick).
Solution: An ergonomic Guitar Pick Grip designed to hold standard guitar picks.
This design uses standard guitar picks that are mounted into a custom handle using set screws. The picks can be easily replaced. Ideally, this would be fabricated out of metal, but that's just a ridiculously expensive concept that would cost hundreds of dollars each... so... it's also easily 3D printed out of ABS, PLA, or any other SLA/FDM processes.
Currently, the only issue with plastic is that the set screws tend to wear away the plastic threads after a several pick replacements. Oh... and it also depends on how Hard Core the musician is.
The design of the grip can be easily customized for larger and smaller hands. I think it would be a lot of fun to make one for a famous rock star one day. If you ever hear of a guitar player with an injury, please send them to me!
-Todd

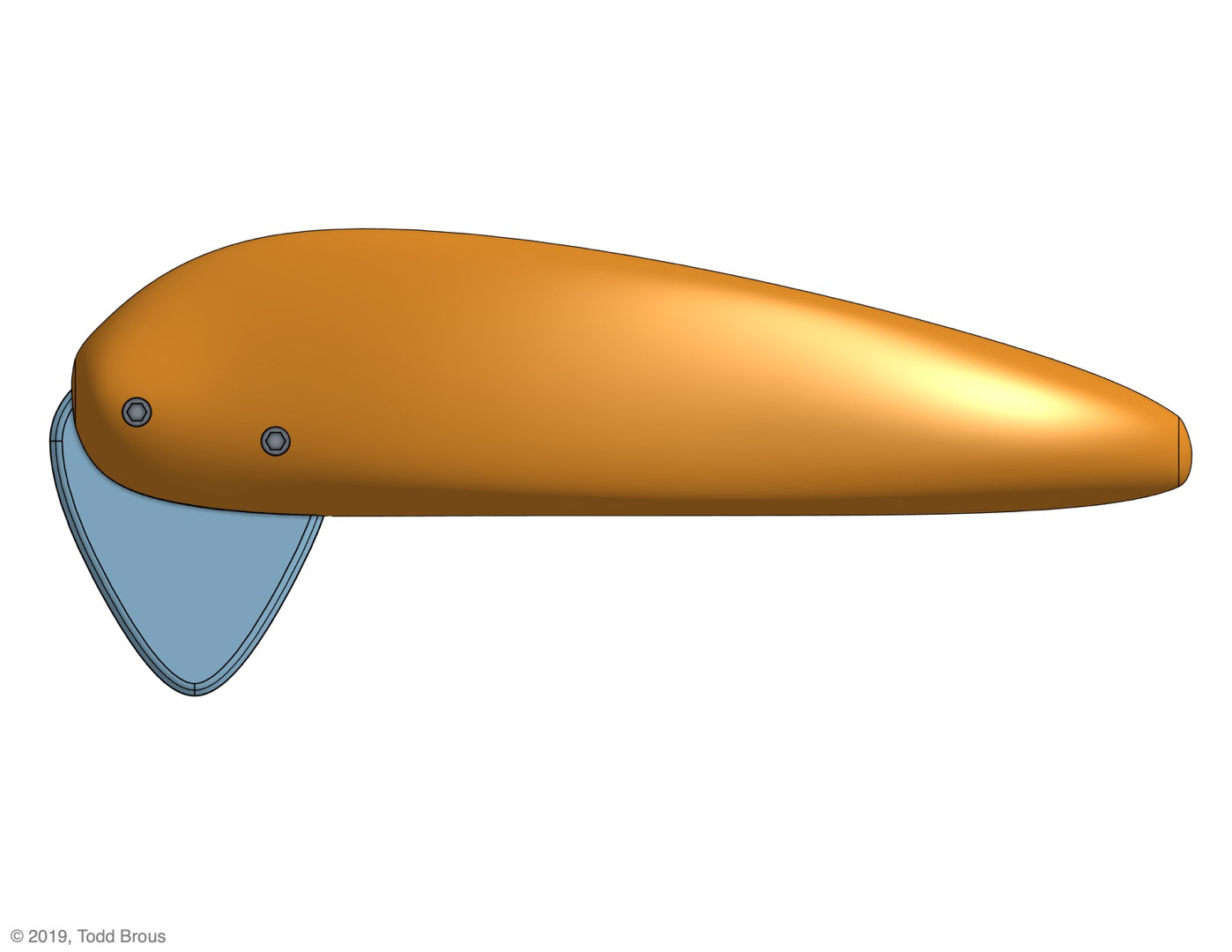

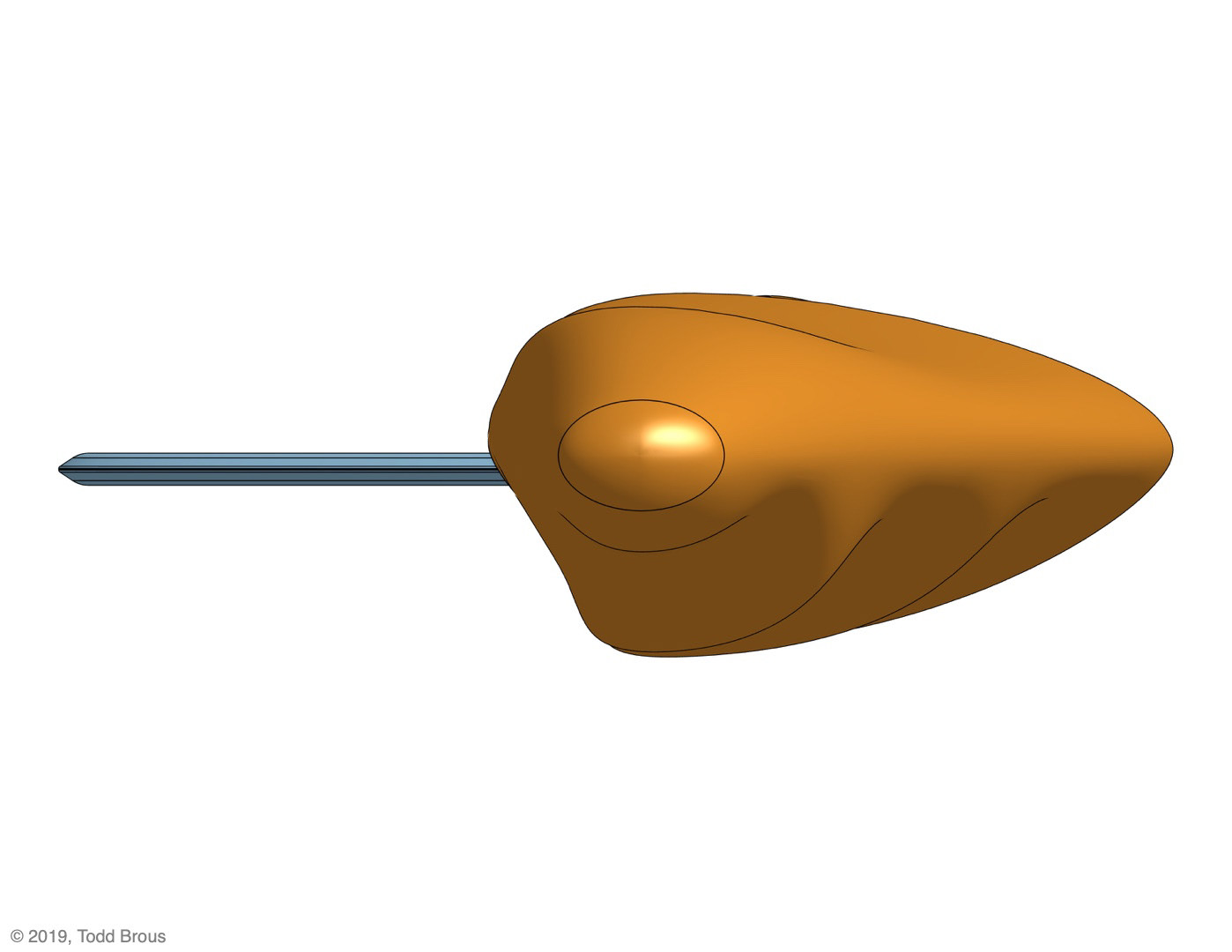

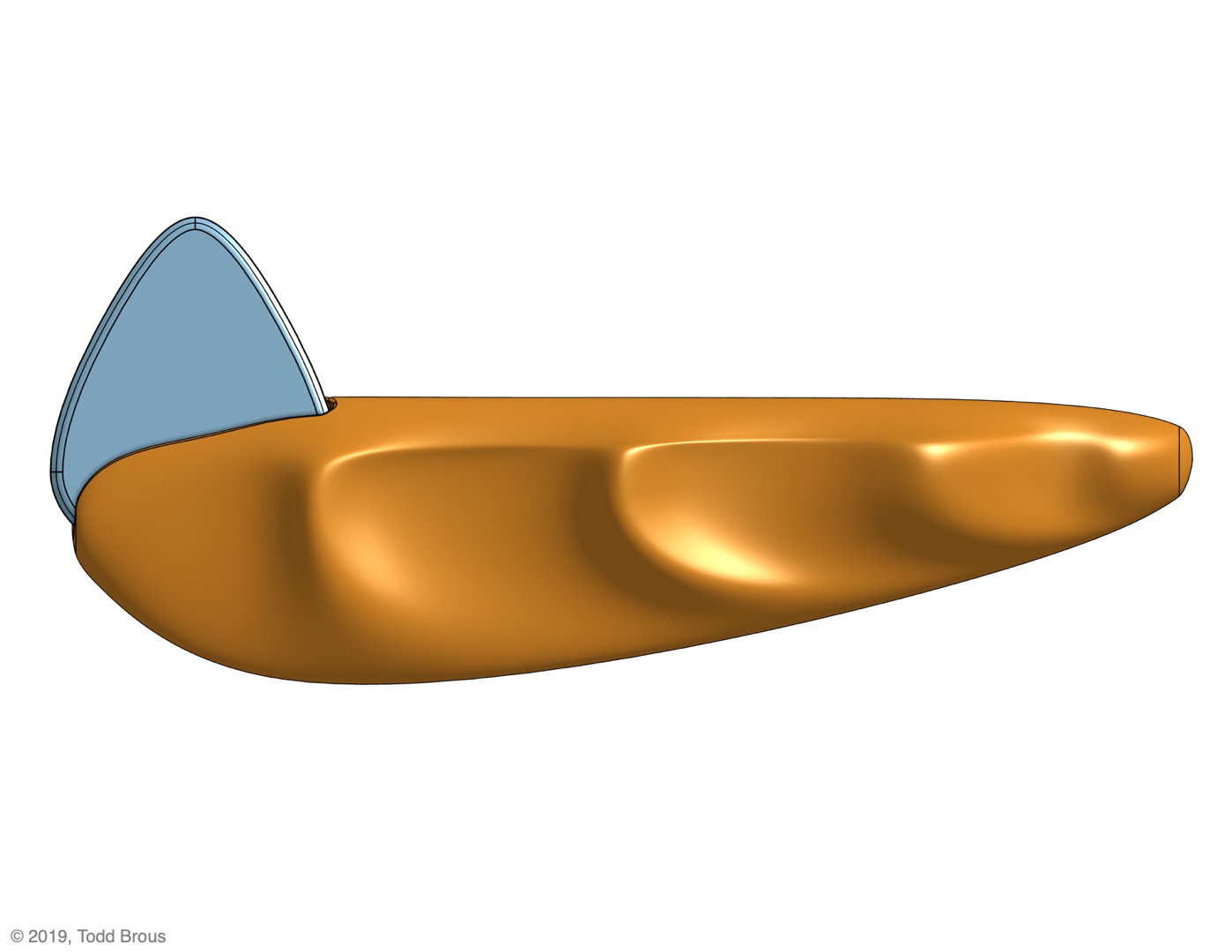

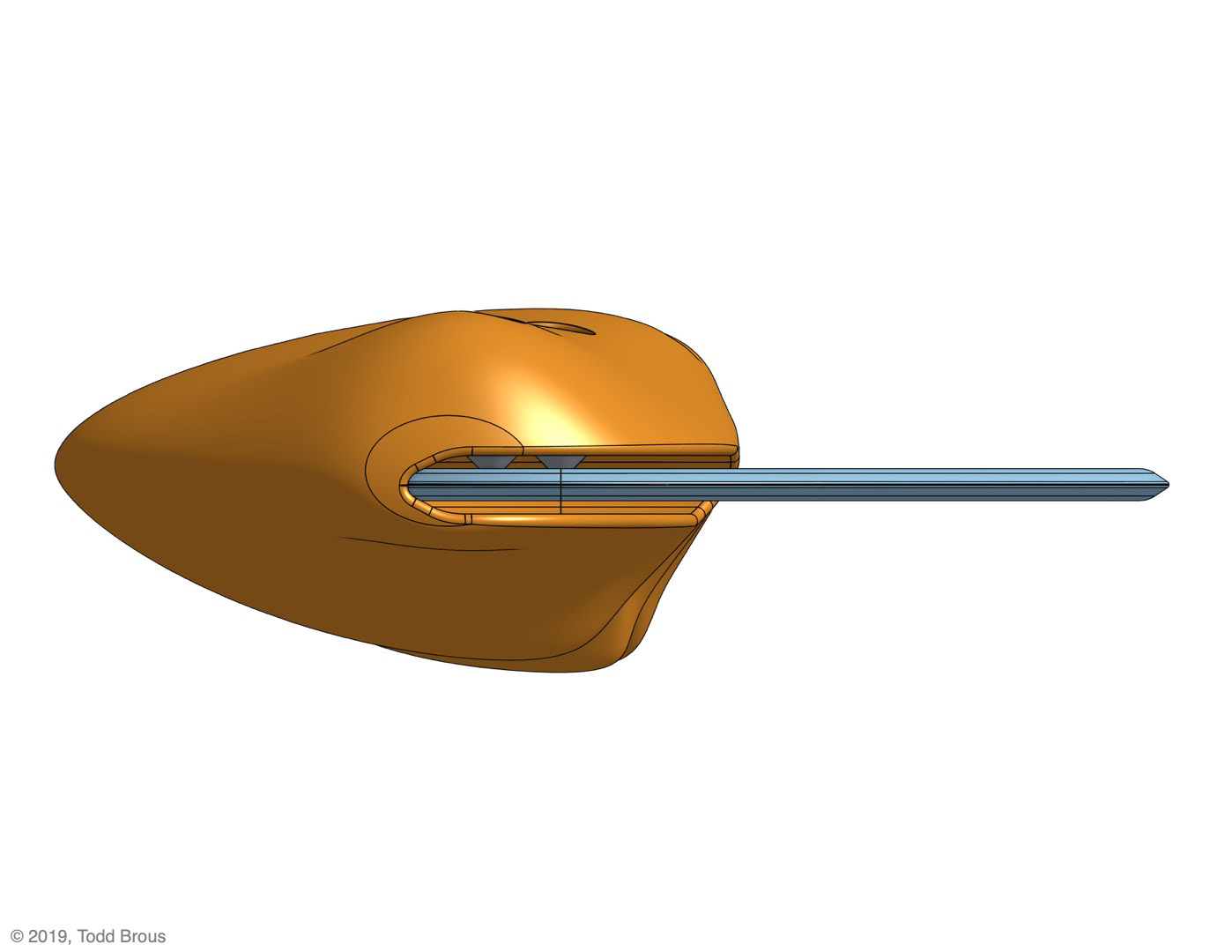

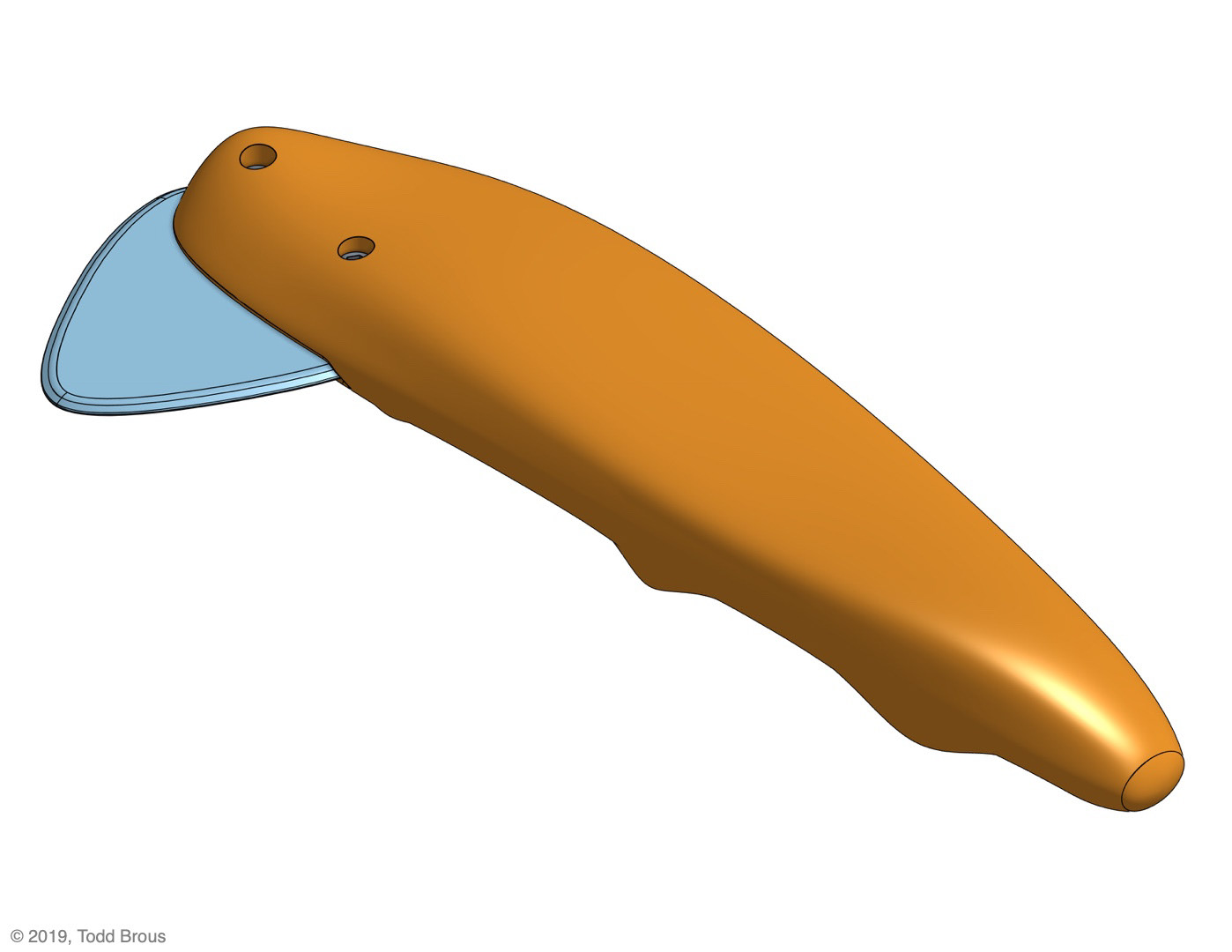

Modeled in Onshape. (Btw, if you use Solidworks, then go check out Onshape. Honestly, I will never use Solidworks again.)
![](https://cdn.myportfolio.com/55b1a692882b4aa65ffbf4d42a413b24/7a74b7cb-d8f9-48e7-ae32-603e3e1b9a9a_rw_1920.jpg?h=2c41e50a6bec6698f5ded90f60e74198)
![](https://cdn.myportfolio.com/55b1a692882b4aa65ffbf4d42a413b24/0ab3cef7-700d-429a-af39-beefe45e0c16_rw_1920.jpg?h=5a54c40eb3bd0e4a94d0599fc2fa617c)
![](https://cdn.myportfolio.com/55b1a692882b4aa65ffbf4d42a413b24/0ce9d010-13cd-4417-b795-565dc33e6a2a_rw_1920.jpg?h=8479012f4775dd9be41a83f3976f5eeb)
![](https://cdn.myportfolio.com/55b1a692882b4aa65ffbf4d42a413b24/eca1f6b3-7215-42e8-a5ab-edb40110bf5f_rw_1920.jpg?h=a6fe4e48cf3b285d45bb03eeff948133)
![](https://cdn.myportfolio.com/55b1a692882b4aa65ffbf4d42a413b24/2efbaf22-6b3b-4a27-8ed8-568201bd84fa_rw_1920.jpg?h=48be41772a354f37bb4e93f586cbe5e6)
![](https://cdn.myportfolio.com/55b1a692882b4aa65ffbf4d42a413b24/f27a5485-d0d8-4b82-9da4-2cedbecf3c06_rw_1920.jpg?h=68e48f0bba04b8429429759e258265c3)
![](https://cdn.myportfolio.com/55b1a692882b4aa65ffbf4d42a413b24/6e17b604-1f56-4bc1-bce0-9e60652c6285_rw_1920.jpg?h=02bd286c2b8b9afbb1c9462530643cf6)

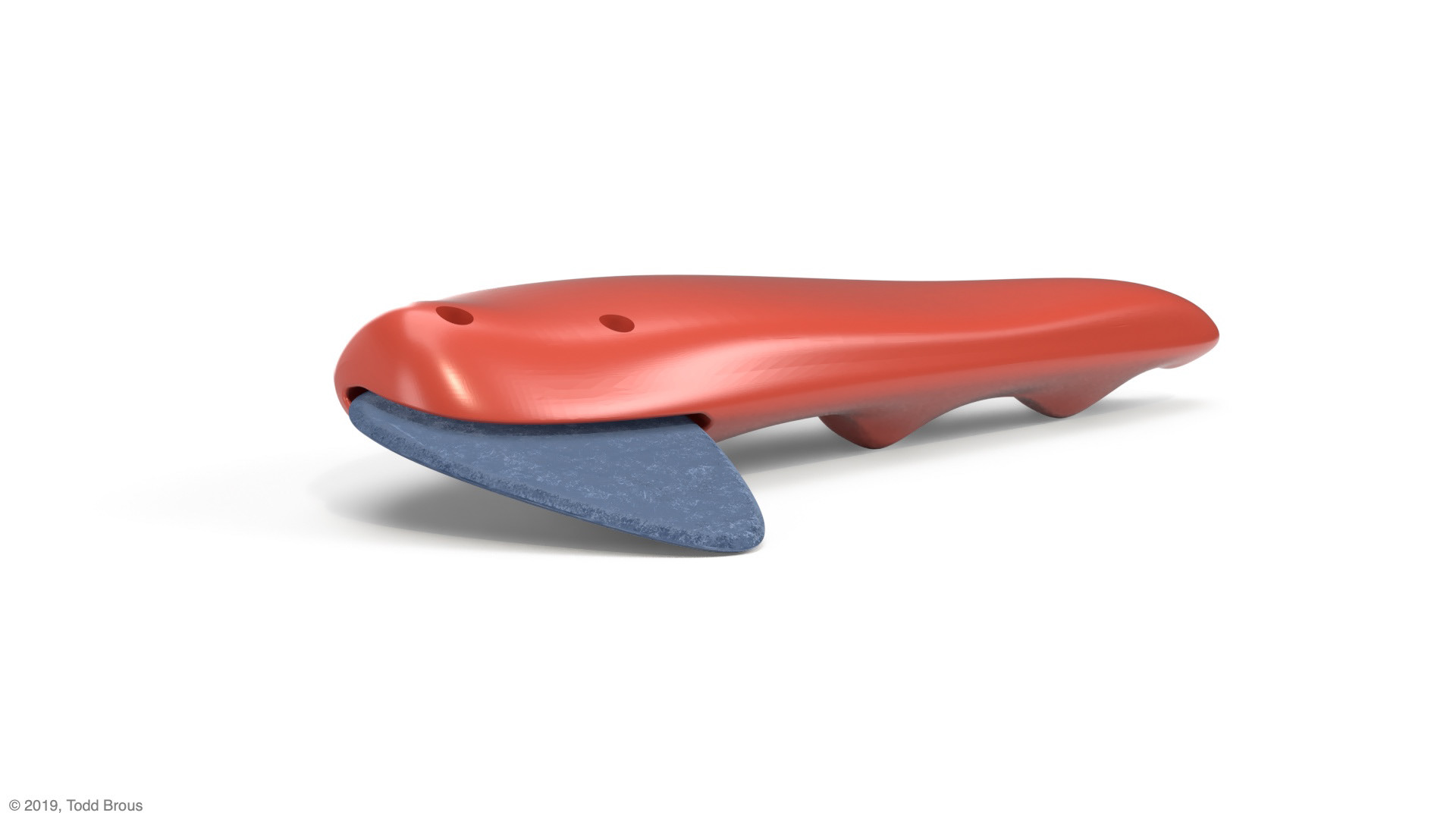

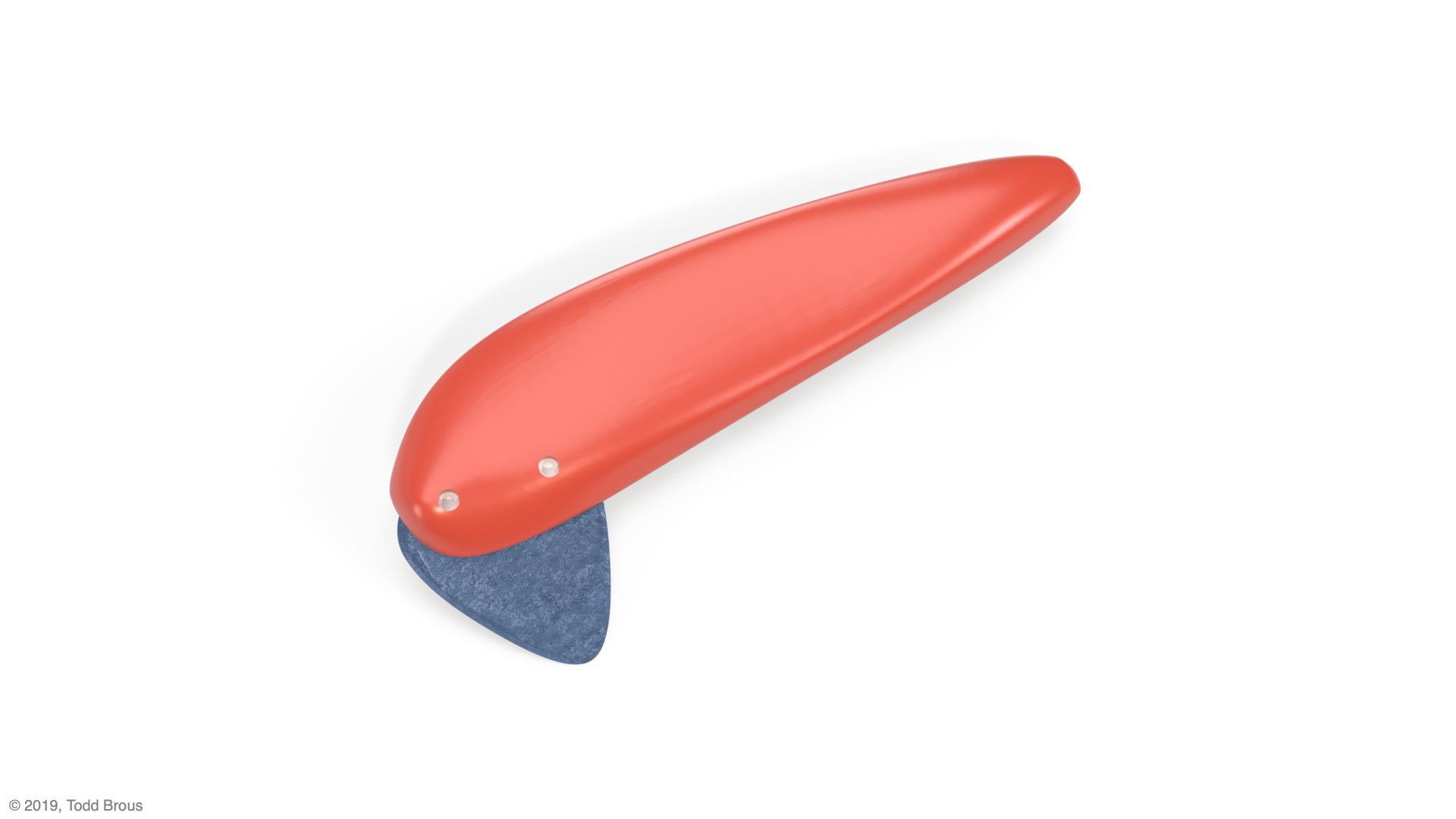

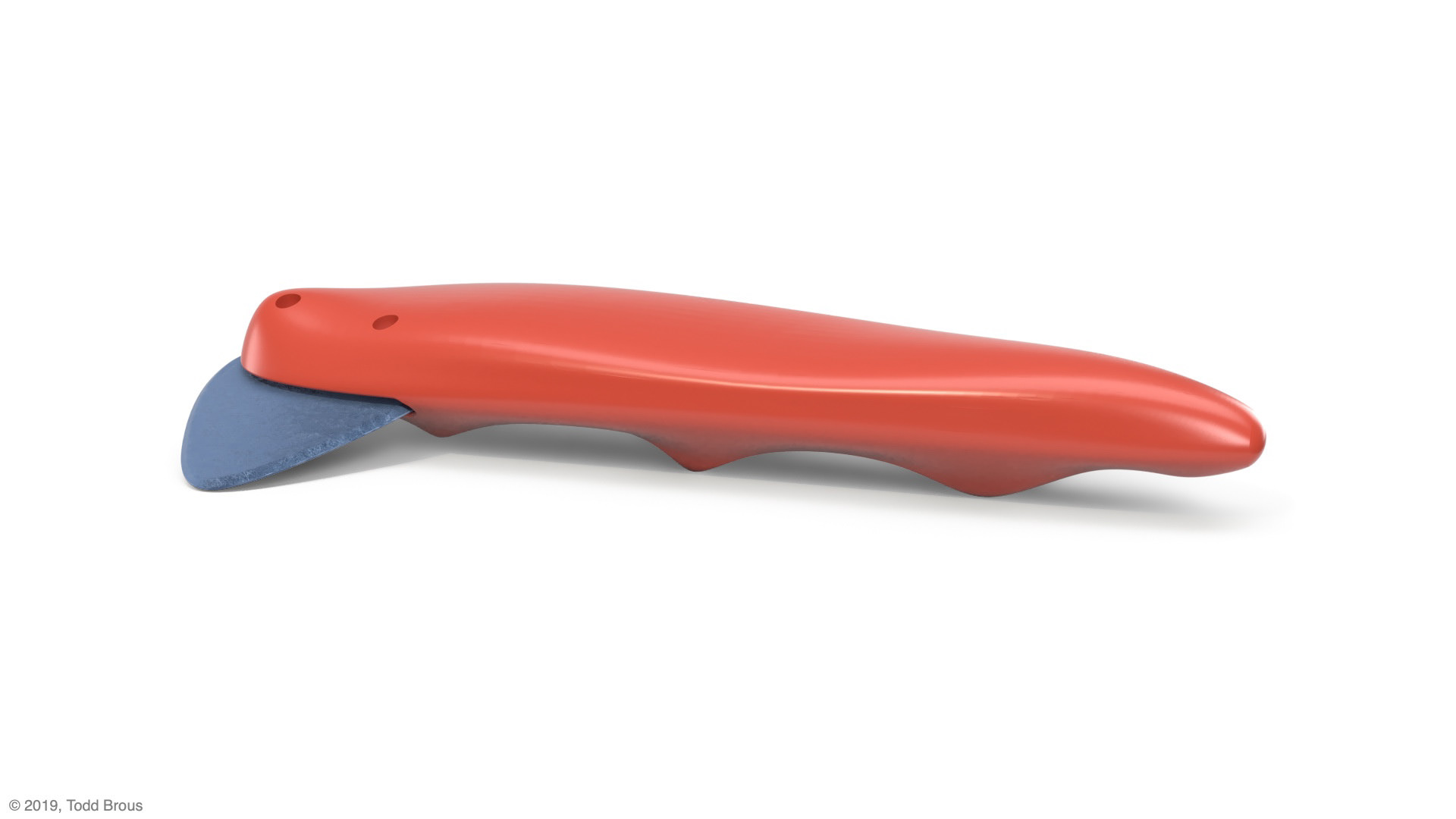

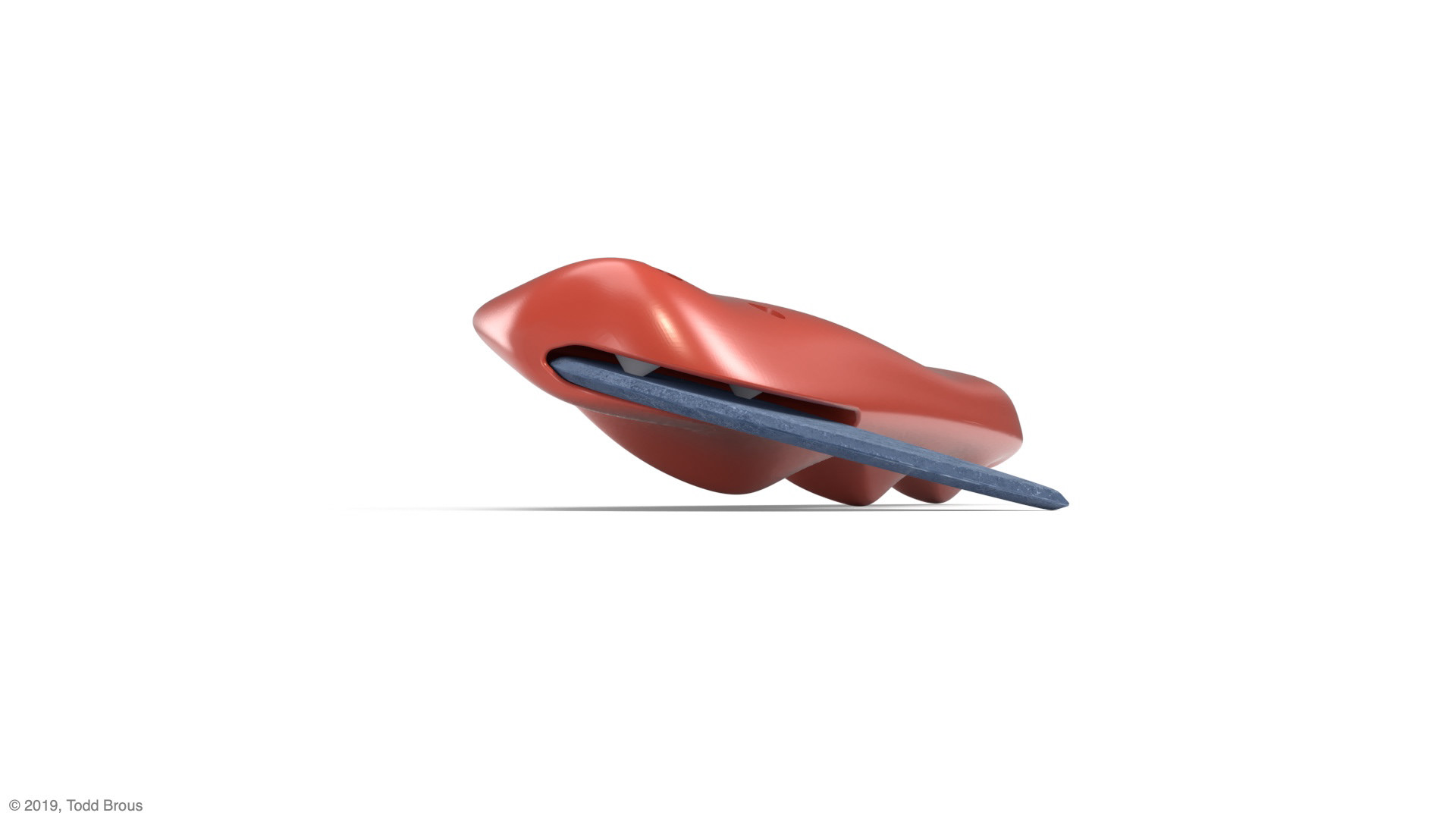

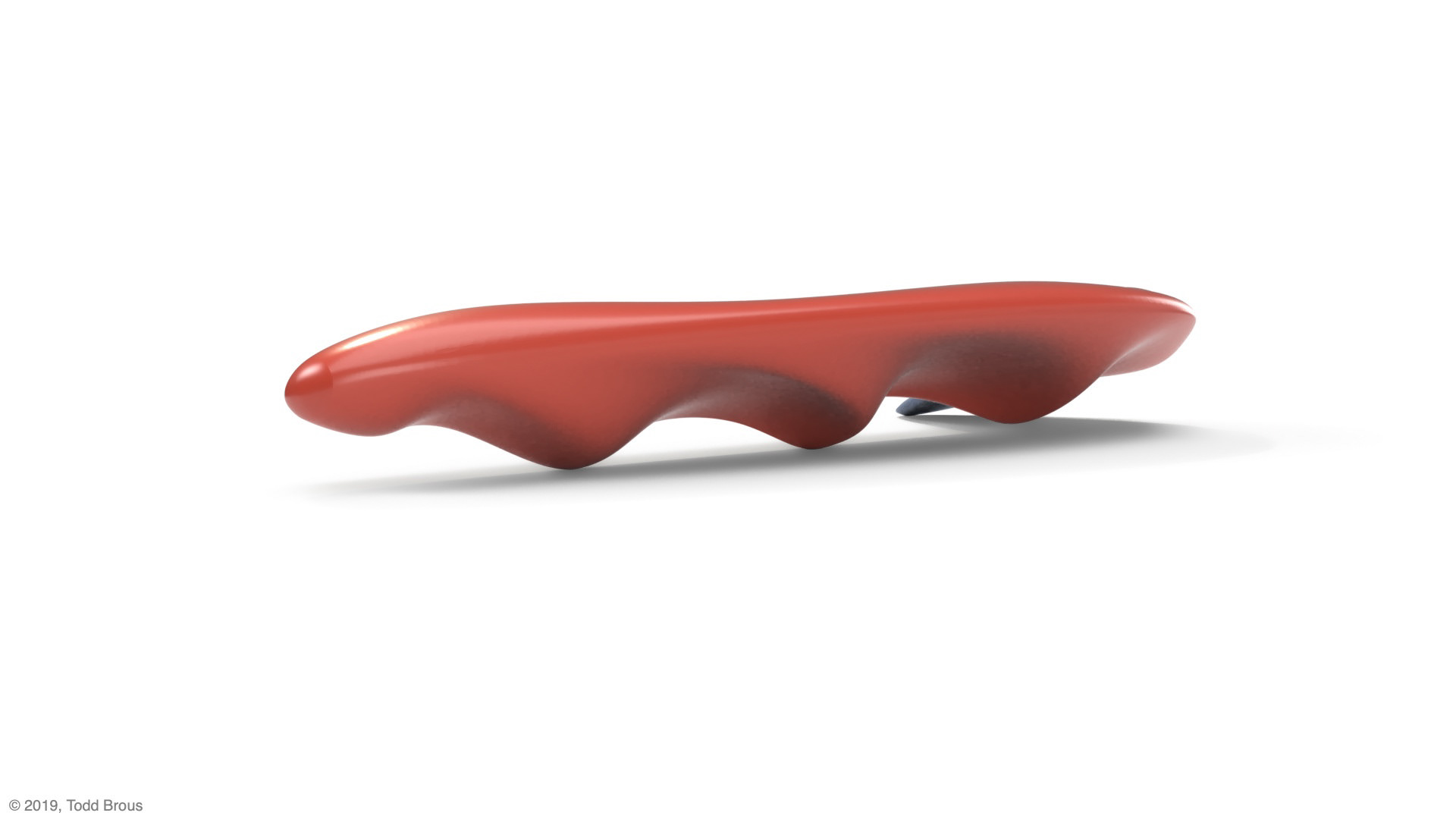

The below images were rendered in Adobe Dimension.
(Note: I have been experimenting with Dimension, and it's got lots of potential. I believe that the visible faceting on some of the surfaces is due to an .STL file import limitation of Dimension. Once Adobe releases support for .STEP file imports, I think this may fix the issue.)
![](https://cdn.myportfolio.com/55b1a692882b4aa65ffbf4d42a413b24/d0e8e017-9896-4b83-b410-e1c4a69796d4_rw_1920.jpg?h=f8a19854d966fb824da4d0df33232704)
![](https://cdn.myportfolio.com/55b1a692882b4aa65ffbf4d42a413b24/c253c1d5-f11e-4f18-8d11-11c7094632db_rw_1920.jpg?h=309e59b0ae6852289fa04848962ef03a)
![](https://cdn.myportfolio.com/55b1a692882b4aa65ffbf4d42a413b24/e46f93d9-fc5d-42f6-a207-1080ecf11020_rw_1920.jpg?h=e25c806dc2e3a82f6586c7e5d27947a9)
![](https://cdn.myportfolio.com/55b1a692882b4aa65ffbf4d42a413b24/fdac02e4-ce83-4838-ae85-a0cd22c975de_rw_1920.jpg?h=c67af720c820502291aef28babbbc081)
![](https://cdn.myportfolio.com/55b1a692882b4aa65ffbf4d42a413b24/6312f5b3-694a-4470-9eb6-06d72f7521ef_rw_1920.jpg?h=b15019d18309b142b4bb24260a54189d)
![](https://cdn.myportfolio.com/55b1a692882b4aa65ffbf4d42a413b24/c9396c7b-77cc-4e4d-b6d8-d2e29812259f_rw_1920.jpg?h=ea14e317d588f482274eefa6ba42fba7)
![Yikes! I need to adjust the lighting angle on this. The whole rim is blown out. Oy...](https://cdn.myportfolio.com/55b1a692882b4aa65ffbf4d42a413b24/df7b8a3d-60c5-48e3-b05d-decd26f83e5d_rw_1920.jpg?h=89bcab35fb3ad9e76efd2aedf5e1407b)
Yikes! I need to adjust the lighting angle on this. The whole rim is blown out. Oy...
![](https://cdn.myportfolio.com/55b1a692882b4aa65ffbf4d42a413b24/bf16f721-4865-4c0a-9c98-caa7681d1423_rw_1920.jpg?h=0aac8a9ad075ccd6acdfe7f280434360)

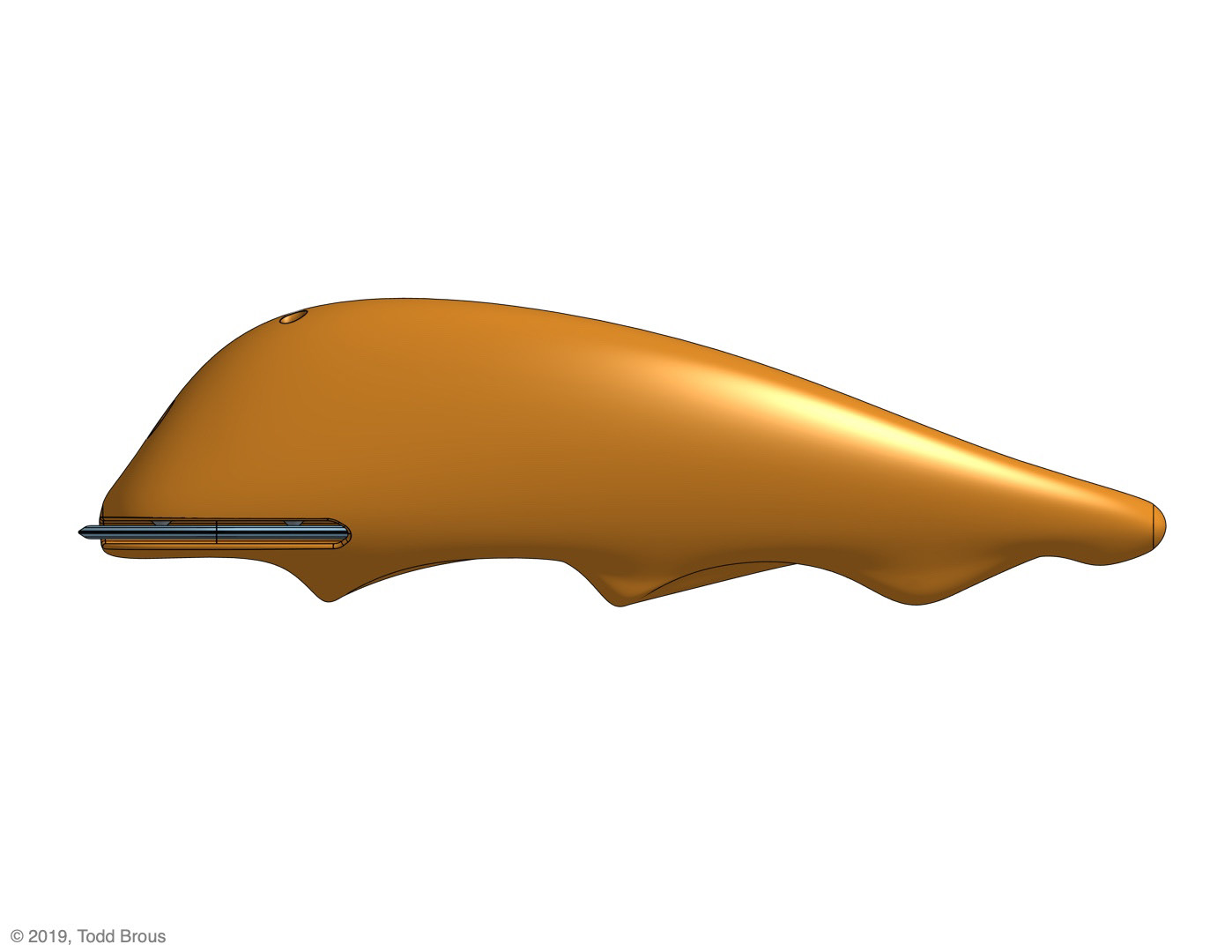

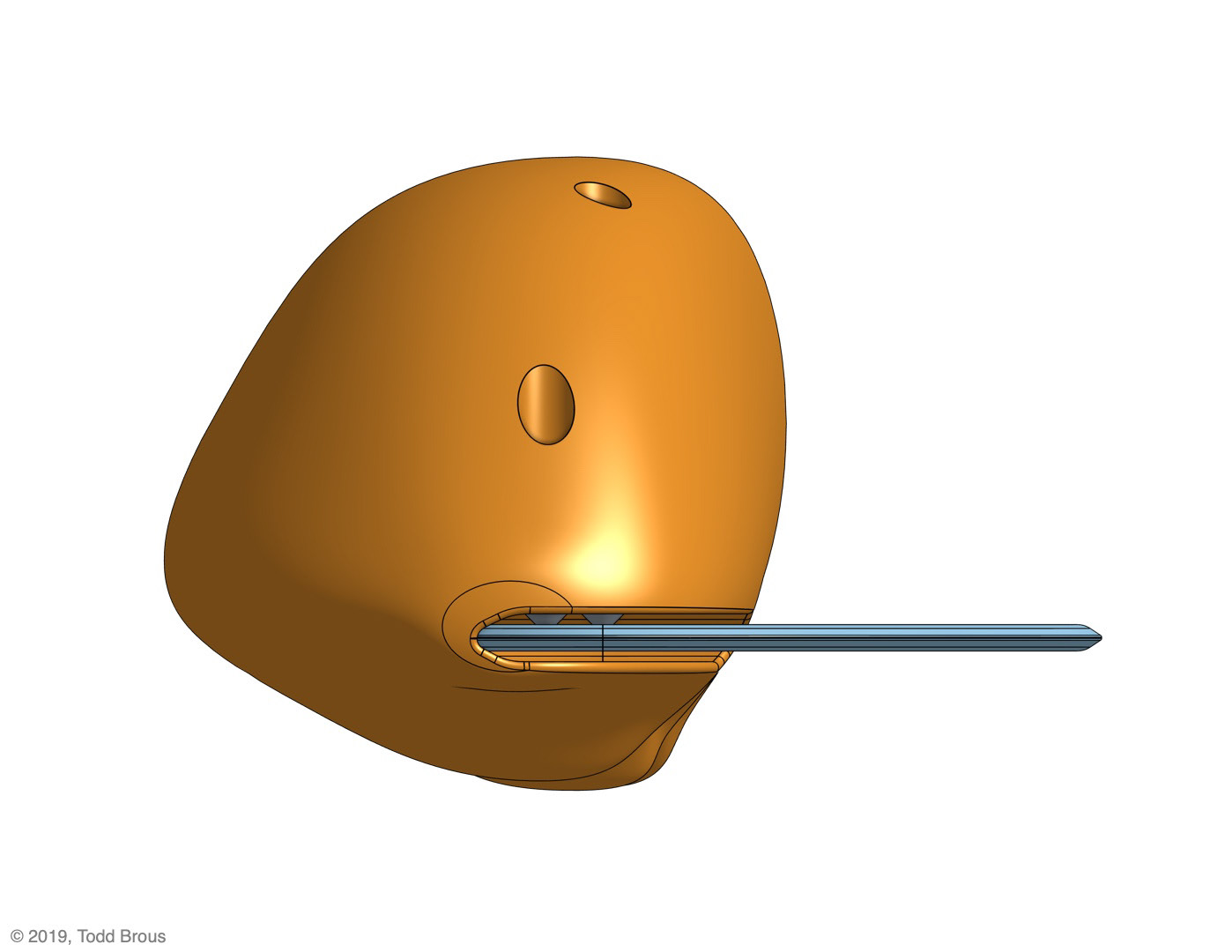

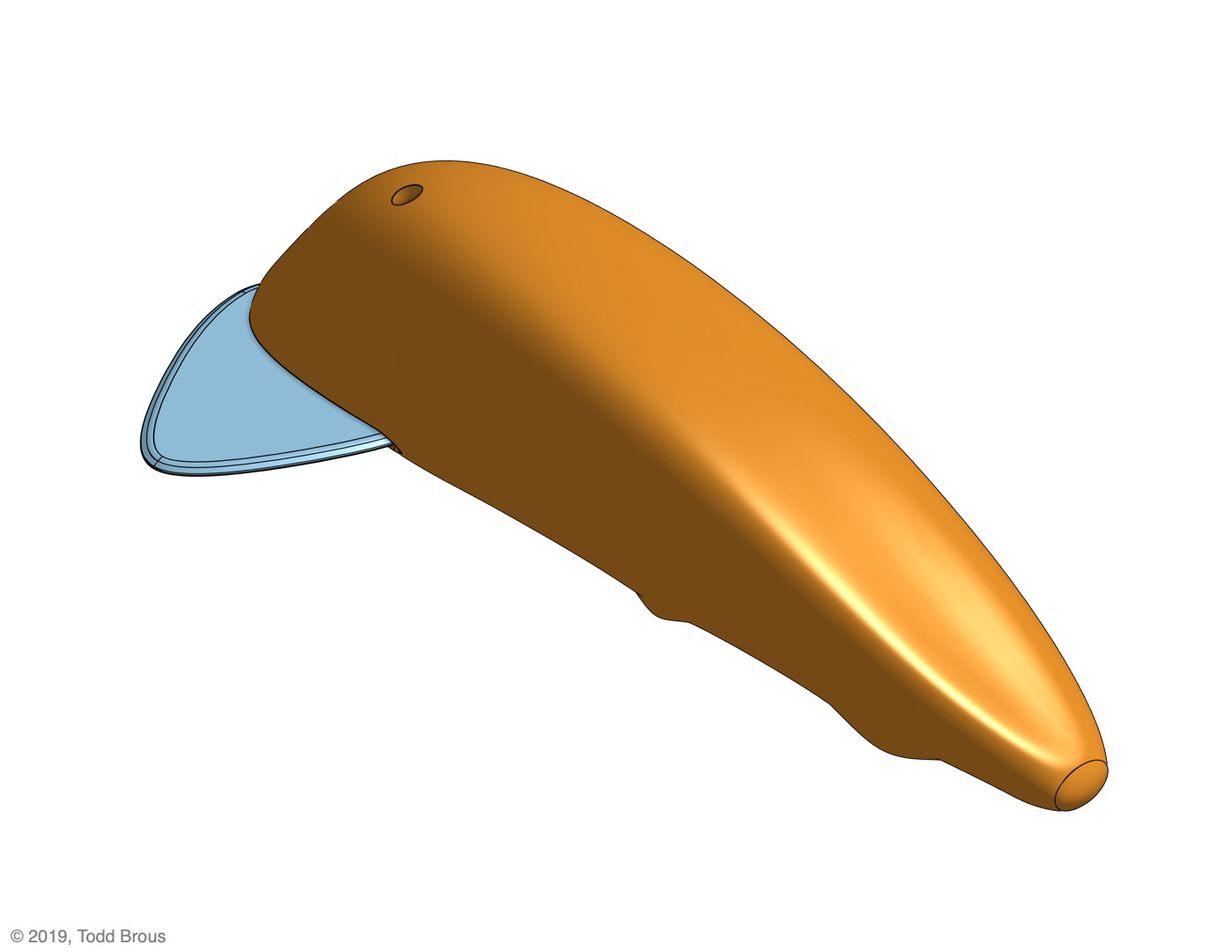

Below is a variation with a higher support angle that can work with a "thumb in a cast".
![](https://cdn.myportfolio.com/55b1a692882b4aa65ffbf4d42a413b24/5c330dae-b7d7-4b0f-9c49-3e54ac0c0434_rw_1920.jpg?h=b2062ec5e482cfbfb0cf3c8d4141cd43)
![](https://cdn.myportfolio.com/55b1a692882b4aa65ffbf4d42a413b24/633b749b-6fd0-4ee9-b2cf-774abef858b7_rw_1920.jpg?h=6d1b7c16564bf99422a04c1732173392)
![](https://cdn.myportfolio.com/55b1a692882b4aa65ffbf4d42a413b24/a524440f-95f9-423a-94b1-d4827249b5b9_rw_1920.jpg?h=06d26cd9835ef3c3f1864e1f14b55bbb)
![](https://cdn.myportfolio.com/55b1a692882b4aa65ffbf4d42a413b24/86f54316-c4fe-4267-8a09-2af588163f64_rw_1920.jpg?h=c8f0bdf091049e0943d0d01318c2712f)
![](https://cdn.myportfolio.com/55b1a692882b4aa65ffbf4d42a413b24/5749f740-3c52-47e5-9487-b44e897160b9_rw_1920.jpg?h=a4ff4eec315b670a65a808c3a4235442)
